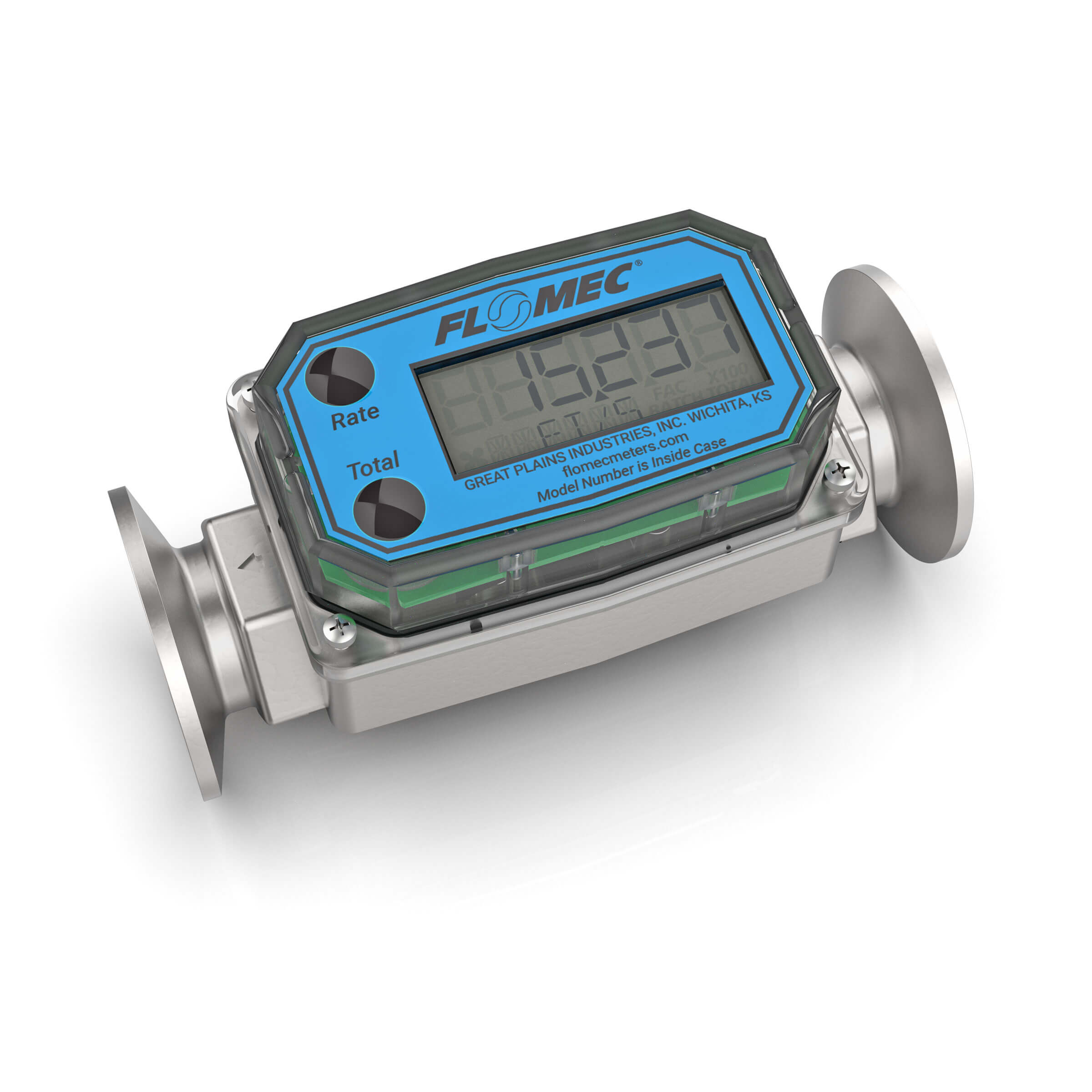

3/4-inch Stainless Steel Flow Meter with Tri-Clamp Fittings. Q9 Digital Display. For fuels, petroleum-based chemicals, solvents, water. Hazardous Area Approved.
The FLOMEC G2 Stainless Steel turbine series offers a robust design for metering more demanding liquid flow, withstanding high-pressure applications. The factory 5-point calibration process ensures accuracy of reading across the flow range. See specifications.
Q9 Digital Display: Battery-powered two button digital display has 11 pre-programmed units of measure plus 1 custom option.
Optional: Use the 4-20mA Output Module (125100-10) as a digital display add-on to provide an industry-standard analog output along with a discrete output for connection to a variety of chart recorders, display equipment, and process control equipment. See specifications for performance details.
Optional: Use the High Temp Riser Kit (125527-01) as a digital display add-on to extend the display away from heat. This can increase the temperature limit to 0° F to 210° F (-18° C to 99° C). See specifications for performance details.
NOTE: The 4-20mA Output Module and the High Temp Riser Kit are not FM Approved. Therefore, using these options with an approved metering system voids FM Approval.
