1-inch PVDF Flow Meter with NPT Fittings. Q9 Digital Display. For harsh chemicals. Hazardous Area Approved.

The FLOMEC G2 PVDF turbine series is our heavy hitter, ready to tackle harsh applications. The PVDF’s design allows easy removal from the line and internal components that are simple to remove/replace. The factory 5-point calibration process ensures accuracy of reading across the flow range.

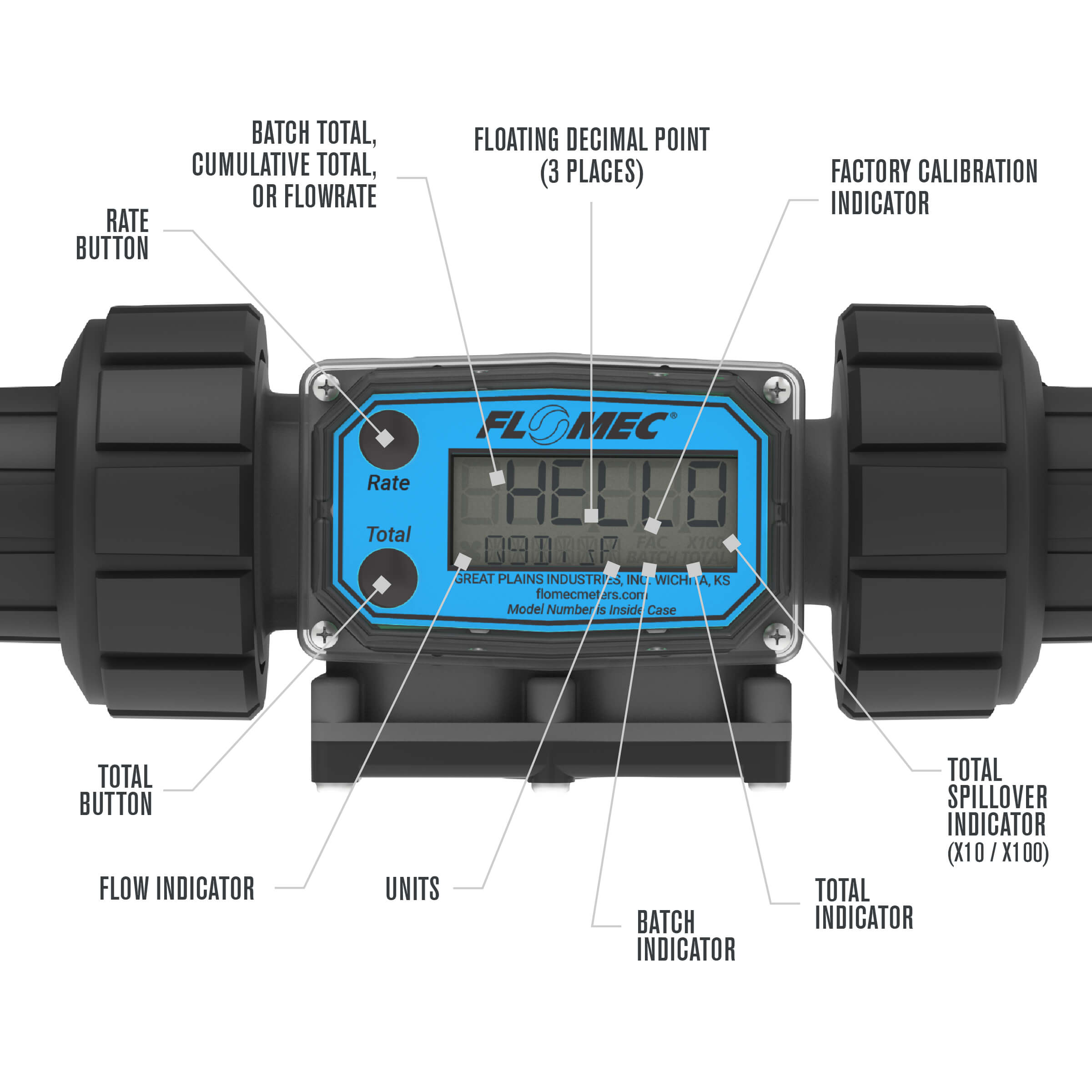

Q9 Digital Display: Battery-powered two button digital display has 11 pre-programmed units of measure plus 1 custom option.

Optional: Use the 4-20mA Output Module (125100-10) as a digital display add-on to provide an industry-standard analog output along with a discrete output for connection to a variety of chart recorders, display equipment, and process control equipment. See specifications for performance details.

NOTE: The 4-20mA Output Module is not FM Approved. Therefore, using these options with an approved metering system voids FM Approval.

FLOMEC® G2 Series

1" Turbine PVDF NPT G2 Flow Meter with Digital Display, Hazardous Area Approved

SKU: G2P10NQ9GMA | MODEL: G2P-10-N-Q

$1,173.00
/
APPROVALS:
ATEX Ex | CE | FM - Canadian and US Standards | IECEx | IP65 | NEMA 4
FOR USE WITH THESE FLUIDS:
Acids | Bleach | Harsh Chemicals
IN STOCK – Ships in 1-2 business days
